When selecting a PEM electrolyzers, comprehensively evaluate efficiency, cost, reliability, and precious metal recovery value. International buyers primarily focus on power consumption efficiency (typically below 4.8 kWh/Nm³), hydrogen production capacity (ranging from several cubic meters to hundreds of cubic meters per hour), system lifespan (usually exceeding 60,000 hours), and iridium loading (directly impacting cost and recovery value). A 2025 industry report indicates that a 1MW containerized PEM electrolyzers costs approximately $1.2–1.8 million, with platinum catalysts accounting for 10–15% of total expenses. Prioritize purchasing from manufacturers providing certified accelerated stress test data to ensure durability under dynamic operation. For recycling, spent titanium anodes and catalyst layers contain precious metals iridium and platinum. The perfluorosulfonic acid membrane can be stripped using supercritical CO₂ (40°C/25MPa), followed by selective iridium extraction via electrochemical dissolution (0.5M H₂SO₄ + 0.1M Ce⁴⁺), achieving up to 97% recovery. Collaboration with specialized precious metal recycling companies is recommended, as they offer relatively higher recovery prices.

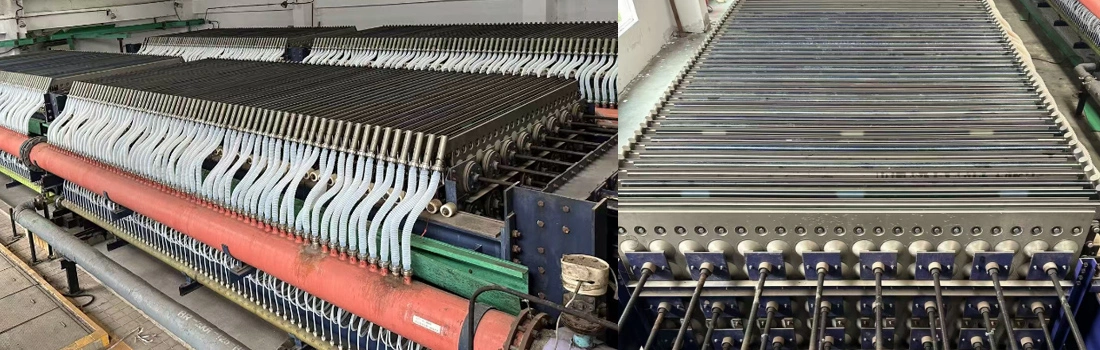

PEM electrolysers efficiently electrolyze water to produce hydrogen under high pressure via a proton exchange membrane (PEM). The core reactions are:
Anode reaction (oxygen evolution reaction, OER): 2H₂O → O₂ + 4H⁺ + 4e⁻
Cathode reaction (hydrogen evolution reaction, HER): 4H⁺ + 4e⁻ → 2H₂
Overall reaction: 2H₂O → 2H₂ + O₂
PEM electrolyzers utilize perfluorosulfonic acid membranes (e.g., Nafion®) as electrolytes, exhibiting high proton conductivity of 0.07–0.08 S/cm and enabling operation at high current densities (1.0–2.2 A/cm²). The membrane electrode assembly (MEA) is the core component, featuring an iridium-based catalyst (e.g., IrO₂) at the anode to withstand the highly oxidative environment, and a platinum catalyst at the cathode to promote hydrogen evolution. Key 2025 technological advancements include: perovskite-structured catalysts (e.g., Ir-doped strontium titanate) reducing iridium usage by 57% while boosting mass activity tenfold; Ultra-thin composite membranes (e.g., NH₂-MOF/polybenzimidazole) achieve conductivity of 0.308 S/cm at 160°C. PEM electrolyzers reach efficiencies exceeding 85%, with sub-second response to renewable energy fluctuations, making them suitable for integration with wind and solar power.
Below is a comparison of key parameters for leading PEM electrolyzers manufacturers in North America and Europe (data based on 2025 market reports):
| Manufacturer | Model | Hydrogen Production (Nm³/h) | Energy Consumption (kWh/Nm³) | System Pressure | Iridium Loading (g/kW) | Price Range (USD/MW) | Application Sector |
|---|---|---|---|---|---|---|---|
| Cummins (USA) | HySTAT PEM Series | 10-100 | 4.5-5.5 | 30-45 bar | 0.3-0.5 | 130-160 | Hydrogen stations, industrial decarbonization |
| ITM Power (UK) | HGASXMW | 5-1000 | 5.06 | 35 bar | 0.4 | 140-170 | P2G projects, energy storage |
| Norway NEL | M Series Containerized | 200-400 | 4.5 | 50 bar | 0.35 | 120-150 | Renewable Hydrogen Production, Refining and Petrochemicals |
| Siemens Energy (Germany) | SILYZER | 500-1000 | 5.0-5.4 | 40 bar | 0.25 | 150-180 | Electronics manufacturing, green ammonia production |
Cummins (Accelera) excels in large-scale deployment with over 600 units installed globally; its 35MW system powers industrial decarbonization in New York. ITM Power specializes in renewable energy integration, offering fast dynamic response despite higher power consumption. NEL's containerized design simplifies installation for rapid deployment. Siemens Energy has the lowest iridium loading (0.25 g/kW), approaching the U.S. Department of Energy's 2026 target (0.1 g/kW), making it suitable for high-purity demand industries. Key purchase considerations: Power consumption below 4.8 kWh/Nm³ reduces operating costs, while high pressure (>30 bar) minimizes subsequent compression requirements.
Precious metal recovery in PEM electrolysers primarily targets the catalyst coating membrane (CCM) and porous transport layer (PTL):
1. Anode catalyst: Utilizes iridium or iridium oxide (IrO₂), typically loaded at 0.2-0.5 mg/cm². After deactivation, iridium can be extracted via electrochemical dissolution (0.5M H₂SO₄ + 0.1M Ce⁴⁺) with a 97% recovery rate. The recovered iridium exhibits an OER overpotential of only 290mV@10mA/cm², approaching that of new material.
2. Cathode Catalyst: Platinum nanoparticles (0.1-0.3 mg/cm²) can be recovered via microwave-assisted acid leaching (aqua regia, 800W), reducing acid consumption by 40%.
3. Titanium-based components: Porous transport layers and bipolar plates coated with precious metals (e.g., TiN) enable titanium recovery via nitridation treatment, with residual iridium valued at approximately $85/g (based on 2025 iridium price of $150/g).
Recovery profitability depends on iridium loading and degradation mechanisms (e.g., coating delamination can reduce iridium loading from 2 mg/cm² to 0.3 mg/cm²). Recovery is recommended every 60,000 hours or upon 15% efficiency decline. A single 1MW PEM electrolyzer yields $20,000-$50,000 in recoverable value (containing 0.3-0.5 kg iridium). When selecting PEB electrolyzers recycling services, verify their supercritical CO₂ and electrochemical purification capabilities to ensure closed-loop precious metal utilization.
Language
